UL/cUL 75Kva Single Phase Pad Mounted Transformers Outdoor Power Distribution Step Down 12.47KV ANSI IEEE Standards
Summarization
Single-phase pad-mounted transformers are compact, self-contained electrical device.It has the characteristics of small size, light weight, low noise, low loss, safety and reliability.It is widely used in residential quarters, commercial centers, hospitals, parks, schools, etc.
Why choose us
WINLEY’s Pad mounted transformers are dielectric fluid-filled, distribution transformers that range up to 34.5 kV. They are specifically designed for handling underground power distribution loads for a wide range of industry applications from data centers, hospitals and other commercial buildings to private utilities and industrial plants, among others.Our solutions are UL listed and designed and tested in accordance with industry standards including ANSI, IEEE, CSA, and DOE, as applicable.
Main data
| Transformer Type | Pad Mounted |
| Transformer Feed Type | Loop Feed |
| Phase | Single Phase |
| Capacity | 75 |
| Vector Group | II6 |
| Primary Voltage | 34500GrdY/19950 |
| Primary BIL | 150 KV |
| Secondary Voltage | 120/240V |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Cooling Class | KNAN; |
| Efficiency Standard(s) | Meets DOE 2016 Standards, Meets ANSI/IEEE Standards |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Efficiency | 99.05% |
| No Load Loss (in watts)* | +/- 240W |
| Load Loss (in watts)* | +/- 830W |

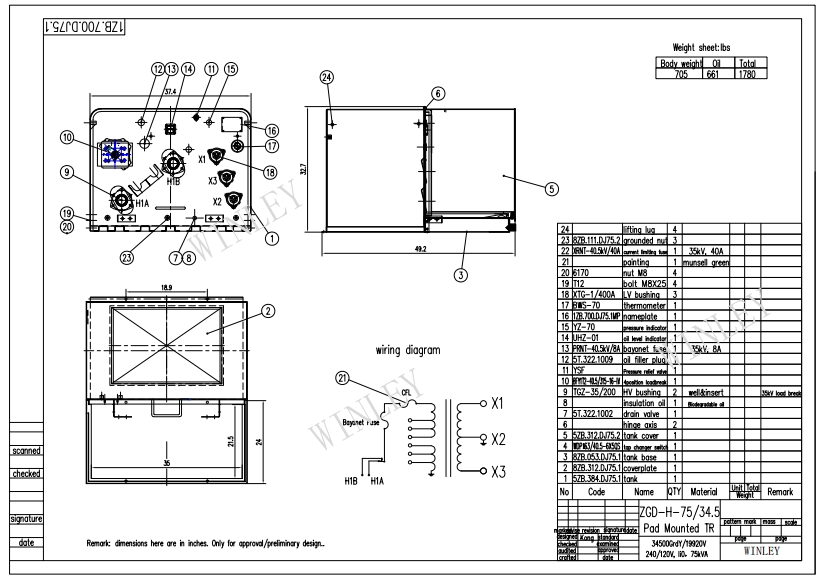

Drawing
Standard Features
• Meet or exceeds ANSI®, IEEE® and NEMA® standards
• Meets DOE Energy Efficiency Standard 10 CFR Part 431 for distribution transformers
• Tank coating exceeds IEEE Std C57.12.28™-2005 and IEEE Std C57.12.29™-2005 standards (stainless steel units only)
• Full compliance with IEEE Std C57.12.28™-2005 standard enclosure integrity requirements
• Laser engraved nameplate
• Recessed stainless steel lifting provisions
• Tank grounding provisions
• Automatic pressure relief device
• Electrical grade mineral oil
• Hinged door with stainless steel hinge pins and barrels
• Floating lock pocket for easy alignment
• Captive stainless steel pentahead door locking bolt
• Oil fill and drain provisions
• Removable sill
• Welded domed tank cover
• High-voltage bushing wells - 200 A
Accessories
• 4 position loadbreak
• Multiple voltages or taps
• Externally-operable multiple voltage or tap changer switches for safe operation
• Stainless steel tank, tank bottom, sill, door, and/or hardware
• Various spades and terminals available for secondary bushings
• High-voltage bushing inserts
• Ground connectors
• One piece high-voltage bushings
• Envirotemp™ FR3™ fluid
• Loadbreak switches
• Drain/sampling valve
• Pressure vacuum gauge
• Liquid level gauge
• Temperature gauge
Specification
| Single phase Pad mounted Transformer Specification |
| Rating | High voltage(kV) | No Load Loss | On load Loss | Height | Depth | Width | Oil Weight(kg) | Total Weight(kg) |
| (kVA) | (mm) | (mm) | (mm) |
| 15 kVA | 34.5/19.92
13.8/8
13.2/7.6
12.47/7.2
or others | 50 | 195 | 840 | 740 | 610 | 45 | 294 |
| 25 kVA | 80 | 290 | 840 | 740 | 610 | 68 | 362 |
| 37.5 kVA | 106 | 360 | 840 | 760 | 610 | 75 | 476 |
| 50 kVA | 135 | 500 | 840 | 810 | 610 | 93 | 553 |
| 75 kVA | 190 | 650 | 840 | 860 | 610 | 132 | 672 |
| 100 kVA | 280 | 1010 | 910 | 1200 | 965 | 230 | 714 |
| 167 kVA | 435 | 1530 | 1000 | 1200 | 965 | 265 | 913 |
| 250 kVA | 550 | 2230 | 1250 | 1300 | 1430 | 325 | 1106 |
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
|
75Kva Single Phase Pad Mounted Distribution Transformer Step Down 34.5KV To 240V ANSI IEEE Standards Images
|
